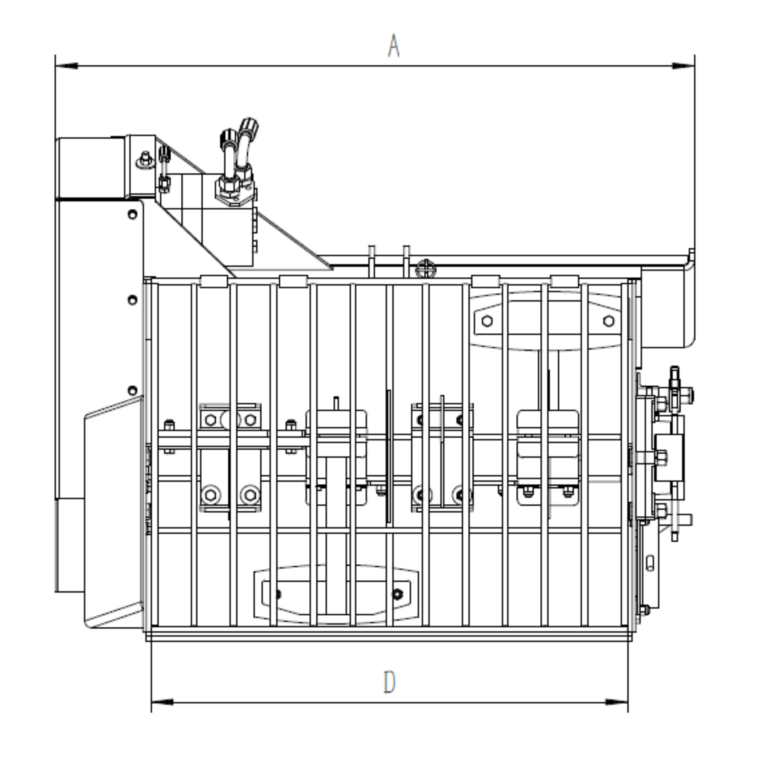

Dimensions and Weight

Mixer Drum width – 36" ID
Overall width – 50"
Overall height – 35"
Overall depth – 30"
Empty weight – 890 lbs.

Skid-Steer Requirements

Skid-Steer mounting – universal quick-tach
Recommended skid-steer rated capacity – 1600 lbs. or greater
Auxiliary Hydraulics – 12 to15 gpm (high-flow not required)
Hydraulic Hoses & Quick-Disconnects included

Mixing Specifications

The SNM930 concrete mixer is a concrete mixer - not a grout
mixer, however it can mix grout if the mix design
incorporates a proper amount of 3/8" pea gravel.
Mixing capacity – 9 ft3 – 1/3 yd3
Recommended minimum slump – 3"
Maximum coarse aggregate size – 3/4"
Mixing action – reversible revolving paddles

Construction and Design

All steel welded construction
Mixing Drum – abrasion resistant steel
Built-in cement bag breaker

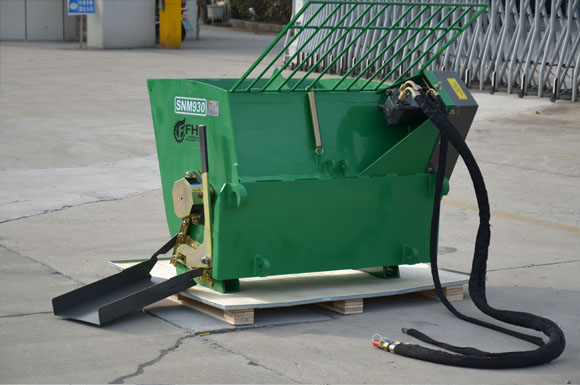

Side discharge mechanical lift gate
24" x 12" Side Chute

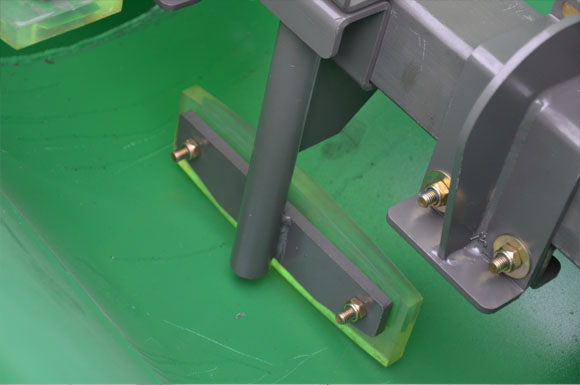

Reversible neoprene pads for mixer paddles Chain
and sprocket drive

SNM930-4

The SNM930 concrete mixer features a new improved design.

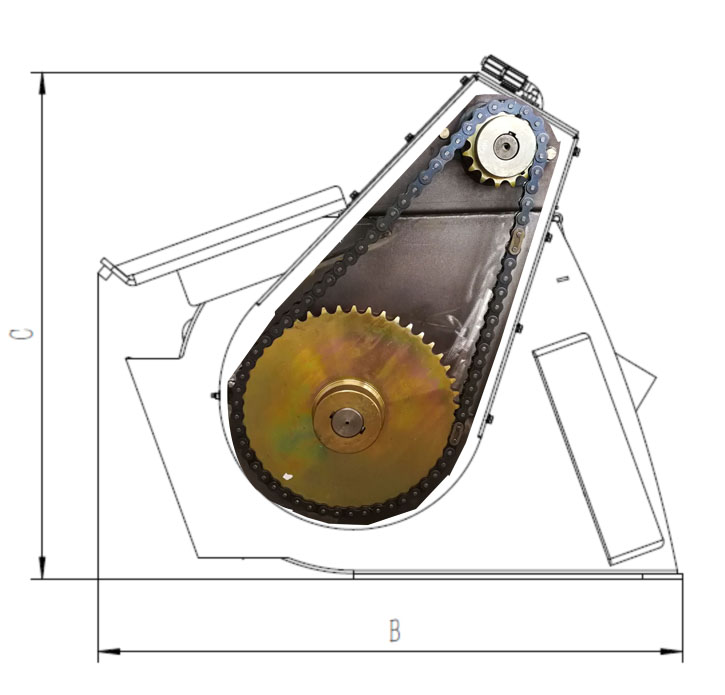

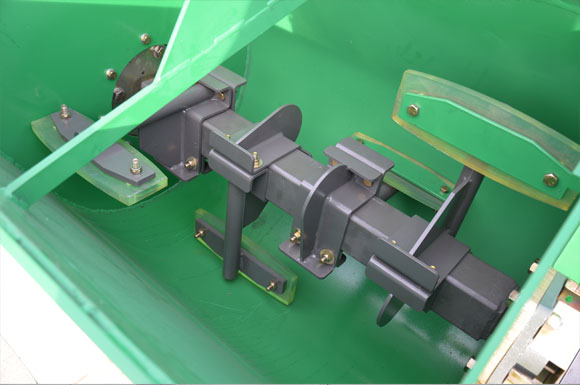

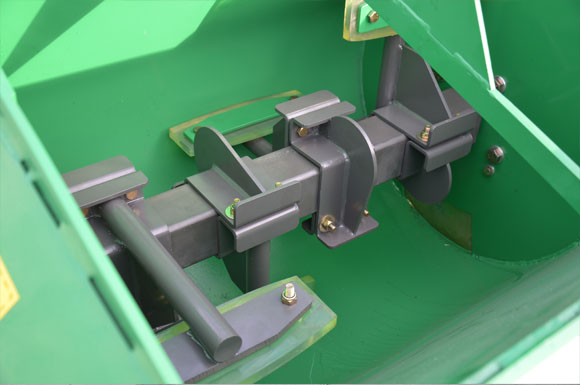

This new design utilizes a revolving paddle mixing action, a method far superior to augers when it comes to producing well-mixed concrete. The revolving paddles are driven by a strong hydraulic motor through a dependable chain and sprocket drive. The hydraulic motor is powered by the auxiliary hydraulics of the skid-steer. The new chain and sprocket drive takes the shock-load off the hydraulic motor when mixing paddles are reversed. This protects the hydraulic motor and greatly extends motor life. Paddle shaft is carried by heavy-duty roller bearings with convenient grease zerks for easy maintenance. Replaceable neoprene pads protect the paddles and are adjustable and reversible for longer life. “Abrasion Resistant Steel” prolongs life of drum.

SNM930-3

THE SNM930 concrete mixer... the fastest and most economical way to produce
small volumes of good quality concrete.
We are all aware that ready-mix companies don’t want to deliver less than full
truckloads of concrete. Furthermore, even if you can get small quantities delivere,d
you will pay a much higher price and will probably be the last on the list for delivery.
With the Scoop-N-Mix and your skid-steer,you can produce good quality concrete
within minutes, and do it without the back-breaking labor of hand loading a mixer. You will have concrete when you need it, where you need it, and at a very economical cost.

SNM930-2

Producing and Placing Concrete with the SNM930 concrete mixeris Simple, Fast, and Easy

Rotate the mixer into a bucket loading position
an,d as with a loader bucket, scoop up the sand and gravel for the mix. The
back-breaking labor of loading by hand is eliminated.
Rotate mixer back to its upright mixing position and break
bags of cement into the mixer using the built-in bag splitter. Water is then added
and within a few short minutes concrete is ready for placement.

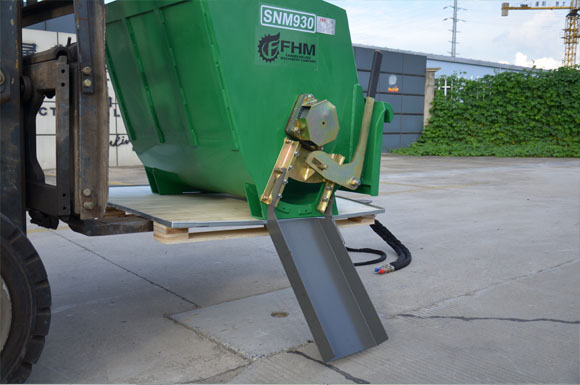

Discharge Concrete in one of two ways. Either through a
mechanical lift gate on the side of the mixer and down a chute, or by simply
tilting the mixer down and discharging out the top. The speed and quantity of
discharge can be easily controlled using either method.

SNM930-1

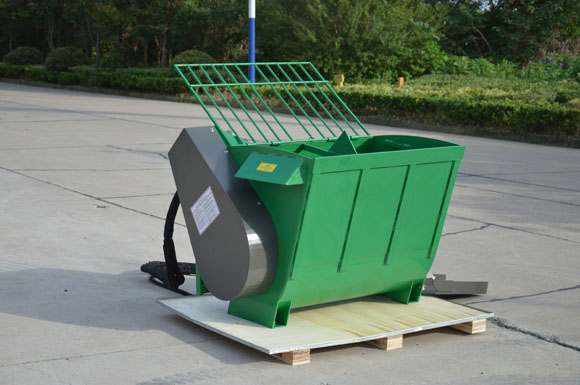

The SNM930 Concrete Mixer combines the advantages of a loader and a concrete mixer into one piece of equipment. This unique product provides the most efficient and economical way to produce small quantities of thoroughly mixed concrete, transport it to often “difficult to reach” pour sites, and then put it in place.

SNM930-0

LIKE HAVING A BUCKET AND MIXER ALL IN ONE.
– Scoop up sand and gravel in the bucket position
– Rotate to mixer position, add bag cement, water, & mix
– Discharge concrete thru side chute or
– Tilt mixer down and discharge out the front

Features-SNM930

The new Farmer-helper Paddle Mixer provides fast, efficient mixing of the particulate matter found in concrete and cement mortar. Using our carefully defined paddle angles and powerful hydraulic motor results in effective axial and radial dispersion of all material in the mix. Throughout the manufacturing process, only the highest quality materials are used to create this unique, new concrete paddle mixer.

Construction & Design
All steel welded construction
Mixing Drum – abrasion resistant steel,6mm thickness
Side plate thickness 6mm
Digging part – 10+6 mm

Built-in cement bag breaker
Side discharge mechanical lift gate
Reversible nylon pads for mixer paddles

•Can be fitted to any skid steer (Standard)
•Manual door opening for discharge
•Equipped with a hydraulic motor operated paddle mixer to ensure greater efficiency
