Forestry Home >> Forestry >> Mechnical Auto-Feed Chipper

3″ x 5″ chipping capacity; 1″ shredding capacity

Changeable shredder grate, 1 1/2″ (normal) and 3/4″ (fine).

Twenty four 1/3″ thick free-swinging hammers pulverize brush.

Large, low-profile hopper for easy filling.

13″ diameter 0.6″ Thick flywheel with 2 reversible 1/3″ thick tool grade steel chipping knifes quickly eat branches.

2 Year warranty / 4 year optional

Weight: 540 lbs shipped, 470 lbs net


Powered by:

Tractor PTO

15-50 HP

Use-ECO19

ECO’s have bigger blades, a larger flywheel, larger shredders and larger feed chutes than comparable units. This provides more shredding and chipping efficiency.

Features-ECO19

Features:

• 3″ x 5″ chipping capacity; 1″ shredding capacity
• Changeable shredder grate, 1 1/2″ (normal) and 3/4″ (fine)
• Twenty four 1/3″ thick free-swinging hammers pulverize brush
• Large, low-profile hopper for easy filling
• 13″ diameter 0.6″ Thick flywheel with 2 reversible 1/3″ thick tool grade steel chipping knifes quickly eat branches
• 1 Year warranty
• Weight: 540 lbs shippe,d 470 lbs net


Technica data:

• For minimum 22 HP tractors (16 kW)
• Cutting knives: 2
• Hammers: 24
• Wood max diametre: 8 cm
• Double hopper
• 3-point hitch of cat.I

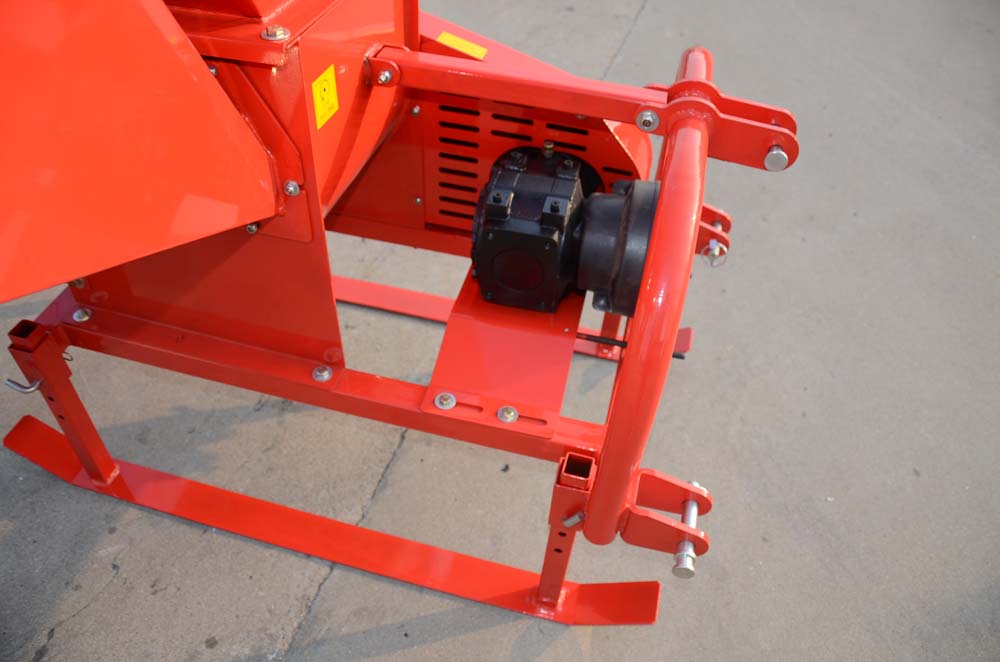

• Cast iron gearbox with free wheel


Selling point:

• 3″ capacity wood chipper
• Adjustable stand allows feed height to be changed
• Changeable Shredder Grate to control output size
• Only requries 15 Hp PTO tractor
• 24 heavy 1/3″ hammers pulverize brush, leaves, corn stocks, etc.
• PTO Powered
